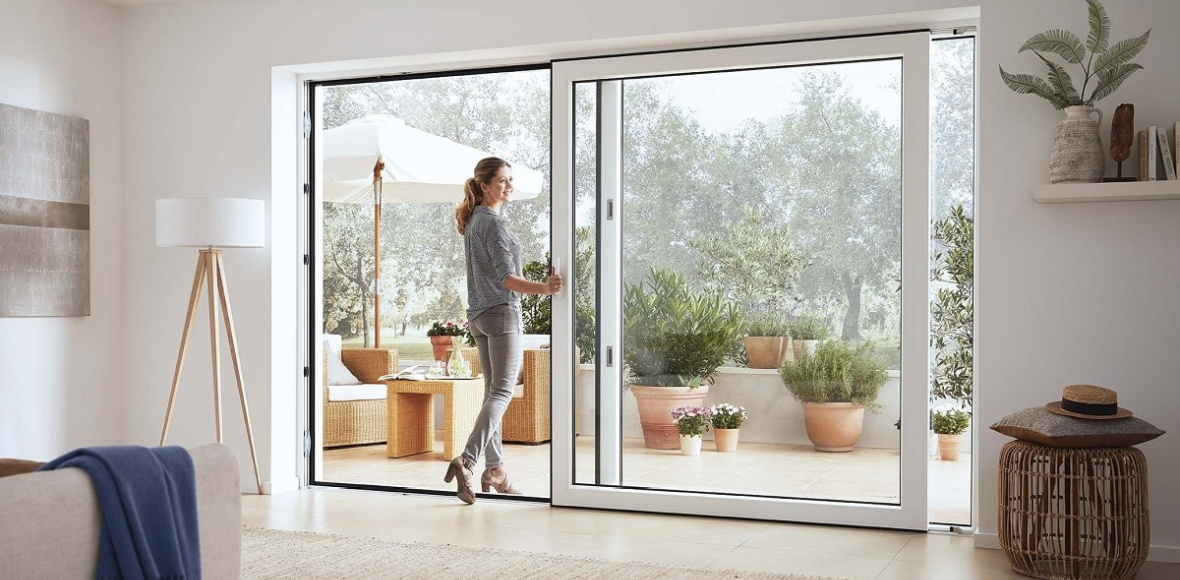

Easy Slide Doors
sliding doors with easy slide technology
Easy Slide Doors reimagine classic sliding doors with elevated performance, effortless operation and modern design flexibility. Engineered with a hybrid frame and multipoint locking hardware, Easy Slide Doors deliver long-lasting function and comfort.
The Innotech Differencesuperior by design
Hybrid Frame
Easy Slide Doors feature a hybrid frame: galvanized steel framing integrally bonded to unplasticized European PVC profiles in a form factor that integrates multipoint locking hardware.
Advanced Glazing
Easy Slide Doors are engineered to support the weight of a high-performance insulated glass unit (IGU). A wide glazing cavity, stainless steel warm edge spacer, and thick glass panes with your choice of Low-E coating deliver industry leading thermal performance.
Effortless Operation
Easy Slide Doors feature intuitive and effortless operation with an ergonomic handle. Every door includes an effective sealing system with two continuous EPMD weather seals. The force-controlled gears then provide reliable compression from the handle to two locking hooks.
Secure Ventilation
The handle can be turned horizontally for secure night venting. In the horizontal handle position, the door is locked but there is a small gap between the sash and the frame for ventilation.
Performance Summary
Easy Slide Doors are NAFS and NFRC tested and labelled. The performance summary provides an overview of key performance metrics; contact us for additional performance information.
Air Tightness
0.01 CFM/FT2
Water Tightness
12 PSF
Structural – Wind Load Resistance
35 PSF
NAFS Performance Class & Grade
LG-PG35
NAFS performance data is based on the following tested size: 120” wide x 96” high. Additional NAFS values are available for different product configurations and tested sizes.
U-Factor SI
Double Glazed: 1.23-1.50
Triple Glazed: 0.90-0.98
U-Factor IP
Double Glazed: 0.22-0.27
Triple Glazed: 0.16-0.17
SHGC
Double Glazed: 0.20-0.26
Triple Glazed: 0.17-0.24
NFRC values represent the most common glazing combinations and are based on the tested size: 79” wide x 79” high. Additional NFRC values are available for different glass combinations and options.
Product Resources
Learn more about our Defender 76ES Easy Slide Doors to confidently integrate our high-performance sliding doors into your next project. Contact us for additional resources.
Additional Resources
Visit our resources page for product installation, adjustment and maintenance instructions.
Resources & SupportProduct Options
Design Flexibility
All of our windows and doors are custom manufactured to your specifications. Select from a variety of performance and decorative options to customize each window and door for your project.
Finish Options
Our windows and doors are available in a variety of interior and exterior colours.
Frame Colours
Exterior and interior frame finish options include durable laminated films. (Due to monitor, video card and/or operating system differences, variations in colour may not be accurate and/or surface texture may not be fully revealed. Before making your final selection, please request a free sample of the colour(s) of your choice from your Innotech Product Consultant.) Click here to view available colour finish options.
Matt Black
Bronze
Anthracite
Grey
Basalt Grey
QuaRtz Grey
Concrete
Grey
Metbrush
Silver
Kitami
Oak Toffee
Oak Malt
Handle Options for Easy Slide Doors
Easy Slide Doors are available with a selection of handle styles.
Easy Slide Handles
Easy Slide Doors are available with a full handle on the interior and an recessed handle on the exterior or with a full handle on both the interior and exterior of the door. Handles with locks are also available.
Decorative Grids for Windows + Doors
Our windows and doors are available with a large variety of decorative grids.
Decorative Grids
Select from surface grids (plant-on grids), simulated divided lites (plant-on with spacer bar) or true divided lites (mullions and sash bars) in a variety of colours, sizes and patterns.
Glazing Options for Windows + Doors
All of our windows and doors are available with a variety of glazing options to ensure your projects achieve its desired performance. Discuss your options in detail with your Product Representative.
Double or Triple Glazing
The Defender 76TS System is available with your choice of double or triple glazing. The wide glazing cavity (1″ for double glazed and 1.5″ for triple glazed) allows the optimal amount of space between each 4mm thick pane of glass to achieve maximum thermal and acoustic performance.
Glass Thickness
The standard glass thickness for our double pane windows is two panes of 4mm thick glass. The standard glass thickness for our triple pane windows is three panes of 4mm thick glass. The thickness of each pane can be customized depending on your specific project requirements. Glass thickness should be discussed with your Product Representative for all projects with specific acoustic performance targets.
LoĒ Coatings
We offer three choices of LoĒ coatings: LoĒ-180™, LoĒ-270™ and LoĒ-366™. LoĒ coatings are used to control the solar heat gain on windows and doors. Coating are selected based on the individual project – and window and door! – performance requirements.
LoĒ-180 by Cardinal Glass Industries
Suggested use:
-In colder climates where solar heat gain is wanted
-On the north face of the building where there is no direct sun
-On windows and doors that are heavily shaded by overhangs, trees or other buildings
LoĒ-270 by Cardinal Glass Industries
Suggested use:
-Good “all around” option for most projects
-May not be ideal for exposed south or west facing windows and doors in warmer climates
LoĒ-366 by Cardinal Glass Industries
Suggested use:
-In warmer climates where solar heat gain needs to be limited
-On exposed south or west facing windows
-Best option to maximize u-value
Decorative Glass for Windows + Doors
Decorative glass can be added to your windows and doors for visual appeal or privacy needs.
Privacy Glass
Decorative or privacy glass is an excellent solution for windows and doors in spaces that need a little extra style or privacy. Click here to view available decorative and privacy glass options.
Sandblasted Glass
A number of sandblast designs are available for windows and doors. Sandblasted glass not only adds visual impact, but can also be used to for privacy. Click here to view available designs or create your own.
CLiC Smart Privacy Glass
Designed for seamless living, CLiC® glass shifts instantly between clear and private, with no delays, distortions or tints. Click here to learn more about CLiC glass.
door Coverings
Shading & Privacy Solutions for Sliding Doors
There are many beautiful, functional and durable window and door coverings available for our products including interior decorative coverings and exterior shading solutions. From sales to installation services, our team can help you achieve both your aesthetic and performance targets.
-Venetian blinds
-Roller blinds
-Panel blinds
-Pleated shades
-Honeycomb shades
-Exterior solar shades
-Motorized interior and exterior shades
